Frequently Asked Questions
Everything you need to know about this head unit
Connect the single RCA cable with the yellow plug (included in your package) to extend your Bluetooth signal. This cable doubles as both a camera input AND a Bluetooth/WiFi antenna extension. The two small blue wires attached are antenna boosters that significantly improve connection stability. This simple connection takes 30 seconds and resolves 90% of Bluetooth issues. Make sure it's firmly connected even if you're not using a rear camera.
Try these proven solutions:
1. Quick Fix: Settings → Apps → Z-Link → Disable → Enable → Open (repeat each use)
2. Check Cables: Use the data/charge USB cable (not charge-only)
3. Bluetooth Setting: Disconnect all other Bluetooth connections - CarPlay needs exclusive access
4. Factory Reset Z-Link: Find the pink 'RESET' app, restart, reconnect Bluetooth, then try Z-Link
5. Sound Issues: Switch audio source to 'AUX' or 'USB/AUX' in your vehicle menu
Most issues are resolved with step 1 or 3!
The processor differs between models: The 2/32GB has a 4-Core processor, while 4/64GB and 8/128GB models feature the powerful 8-Core Cortex-A55 processor. Combined with RAM differences: The 2/32GB model with its 4-Core processor and limited RAM may experience slowdowns with heavy multitasking. The 4/64GB with 8-Core provides smooth performance for most users - no lag, seamless app switching, and enough storage for maps and music. The 8/128GB with 8-Core offers maximum performance with its generous RAM allowing unlimited multitasking and massive storage for extensive media libraries. Think of RAM like your desk space - more RAM means you can have more apps open simultaneously without slowing down.
Absolutely normal! These head units are complete replacement systems with their own GPS antenna, microphone, and Bluetooth module. Your factory connectors for these features won't be needed anymore. The important connections are: main power harness, speaker outputs, and the yellow RCA cable (even if not using a camera - it extends Bluetooth range). Any leftover factory plugs can be safely tucked away. If you're unsure about any connection, our support team is here 7 days a week.
Z-Link updates are handled through system firmware updates. Go to Settings → System → System Update. If an update is available, download it to a USB drive (FAT32 format) and install. Important: Never download Z-Link APKs from unofficial sources - they won't work and may cause issues. If you're having compatibility issues with newer iOS versions, the disable/enable workaround (Settings → Apps → Z-Link) usually resolves them while waiting for official updates.
Consider your usage:
• 2/32GB (4-Core): Budget option - fine for basic use, but may lag with multiple apps due to 4-Core processor and limited RAM
• 4/64GB (8-Core): Sweet spot - smooth Android Auto/CarPlay, multitasking, and ample storage
• 8/128GB (8-Core): Premium choice - unlimited multitasking, massive storage, future-proof for years
Most customers choose 4/64GB for the perfect balance of performance and value. The extra RAM makes a huge difference in daily smoothness!
The yellow RCA cable's blue antenna wires also boost WiFi signal! Make sure this cable is connected. Additionally, try these tips: Position the blue antenna wires away from metal surfaces, check that your phone's hotspot is set to 2.4GHz (not 5GHz) for better range, and ensure the head unit's WiFi sleep policy is set to 'Never' in Settings → WiFi → Advanced. For best performance with wireless CarPlay, keep your phone within 1-2 meters of the head unit.
Go to Settings → Sound → Equalizer and adjust to your preference. For more volume, increase the 'Loudness' setting. The 4/64GB and 8/128GB models have superior audio chips that provide cleaner, louder sound. If you have an amplifier, use the RCA outputs for best quality. Also check Settings → Factory Settings (password usually 126) → Audio settings for additional gain controls. Remember: higher-spec models (4GB+) include premium audio components for noticeably better sound.
Yes! Most vehicles work instantly. If not, use the steering wheel learning app: tap the steering wheel icon, press each button on your wheel, and assign functions. For newer vehicles with CANbus, we provide CANbus modules for automatic setup. Some vehicles may need the Key1/Key2 wires connected (usually included in our harness). If you're having trouble, let us know your exact vehicle model and we'll provide specific instructions.
We offer a 30-day return policy. If it doesn't fit or there's a compatibility issue, we'll work with you to resolve it. If you change your mind, a 20% restocking fee applies. Our team verifies compatibility before shipping to minimize issues. We provide installation support 7 days a week to help resolve any problems. With our 3-year warranty and Australian-based support, you can purchase with confidence. Full details in our Refund Policy.
History and Evolution: A Global Workhorse's Origins and Growth:
First Generation Toyota HiAce (H10 and H20, 1967–1977):
Toyota's venture into compact vans and transporters began in earnest with the original HiAce in 1967, characterized by simplicity, reliability, and an economical operation that quickly resonated globally. Serving as a versatile small transporter suitable for businesses and families alike, it was embraced for ease of maintenance, affordability, and utility.
Second Generation (H30 and H40, 1977-1982):
With the late 1970s came broader international recognition. Improvements in cabin comfort, larger cargo capacity, and refinements in ride quality reflected the evolving demands of professional users and regional small business operations, securing deeper trust in the HiAce name internationally.
Third Generation (H50 and H60, 1982-1989):
The third iteration firmly etched its identity because of famously rugged engines and superior durability. Many owners from this period steadily praised its ability to handle heavy workloads with minimal complaint, cementing its reputation as a reliable tool for commercial duties and an indispensable choice for transportation services across many countries.
Fourth Generation (H100, 1989-2004):
An era of substantial modernization marked the fourth-generation HiAce. It introduced unprecedented improvements in safety, ride quality, and general driving refinement. Internationally marketed, it saw increasing usage in urban transportation—especially taxis and shuttles. Owners appreciated the more polished driver environment, the durability of diesel and petrol powertrains, and reduced cost of ownership through notable reliability.
Fifth Generation Toyota HiAce and Regius Ace (H200 series, 2004-2019):
The year 2004 brought the comprehensive redesign of the HiAce; simultaneously introduced was its closely-related stablemate—the Toyota Regius Ace—for particular markets including Japan. Sharing nearly identical design elements, powertrain options, and specifications, the Regius Ace primarily differentiated itself through subtle styling elements aimed at select segments seeking a slightly upmarket presence, often positioned towards owner-operators or small businesses demanding a subtly more sophisticated visual presence. Renowned for interior space efficiency, broad cargo capacity, passenger comfort considerations, and significant mechanical endurance, it quickly earned admiration globally among demanding commercial applications such as passenger shuttles, cargo transport, contractors, and outdoor recreation enthusiasts. This series particularly thrived in regions like Japan, Australia, and various Asian markets, notably as a robust diesel van, powerful and efficient, becoming a preferable alternative to American and European commercial vans due to its balanced combination of practicality, reliability, and economy.
Integrating Advanced Technology - Brummstadt Head Unit Compatibility:

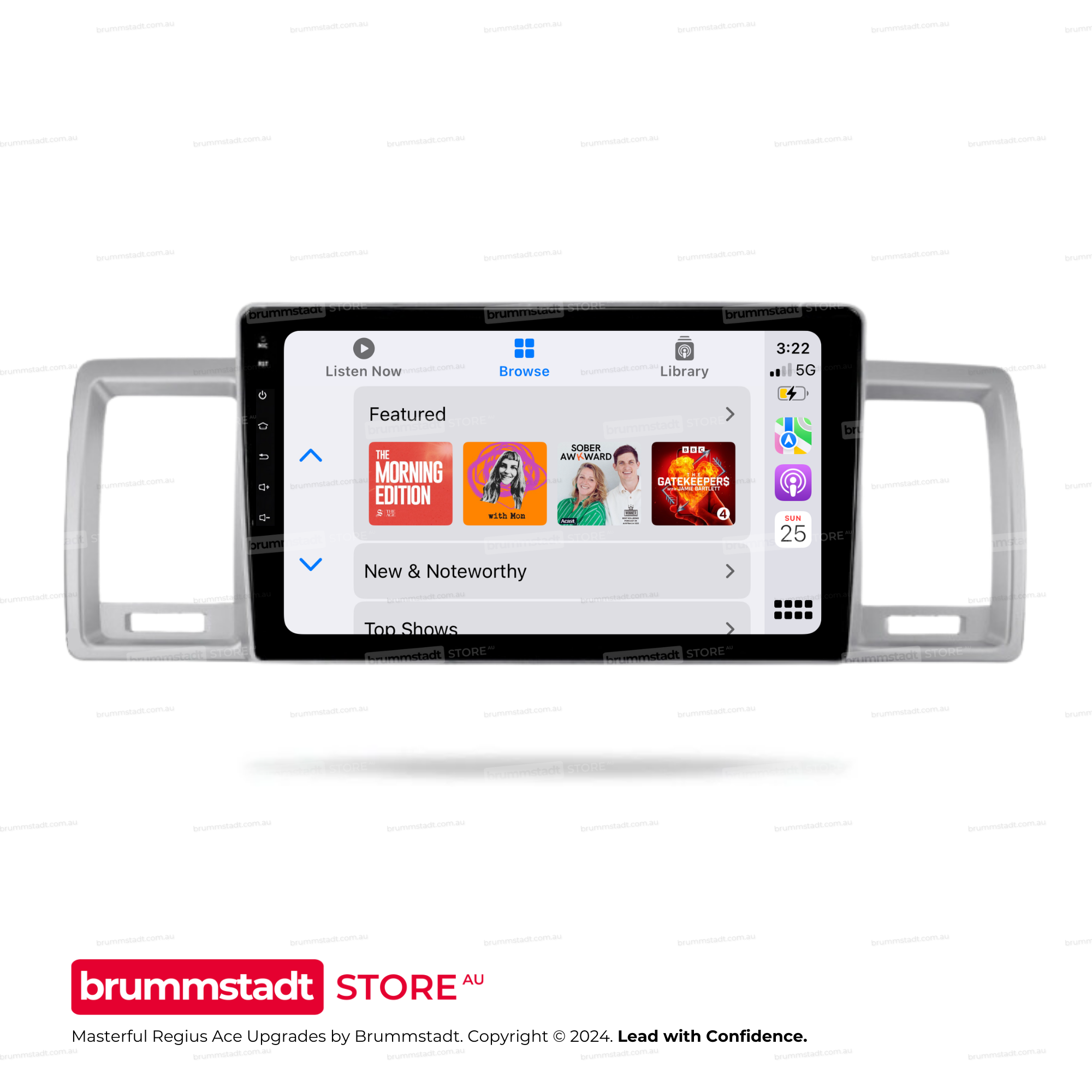

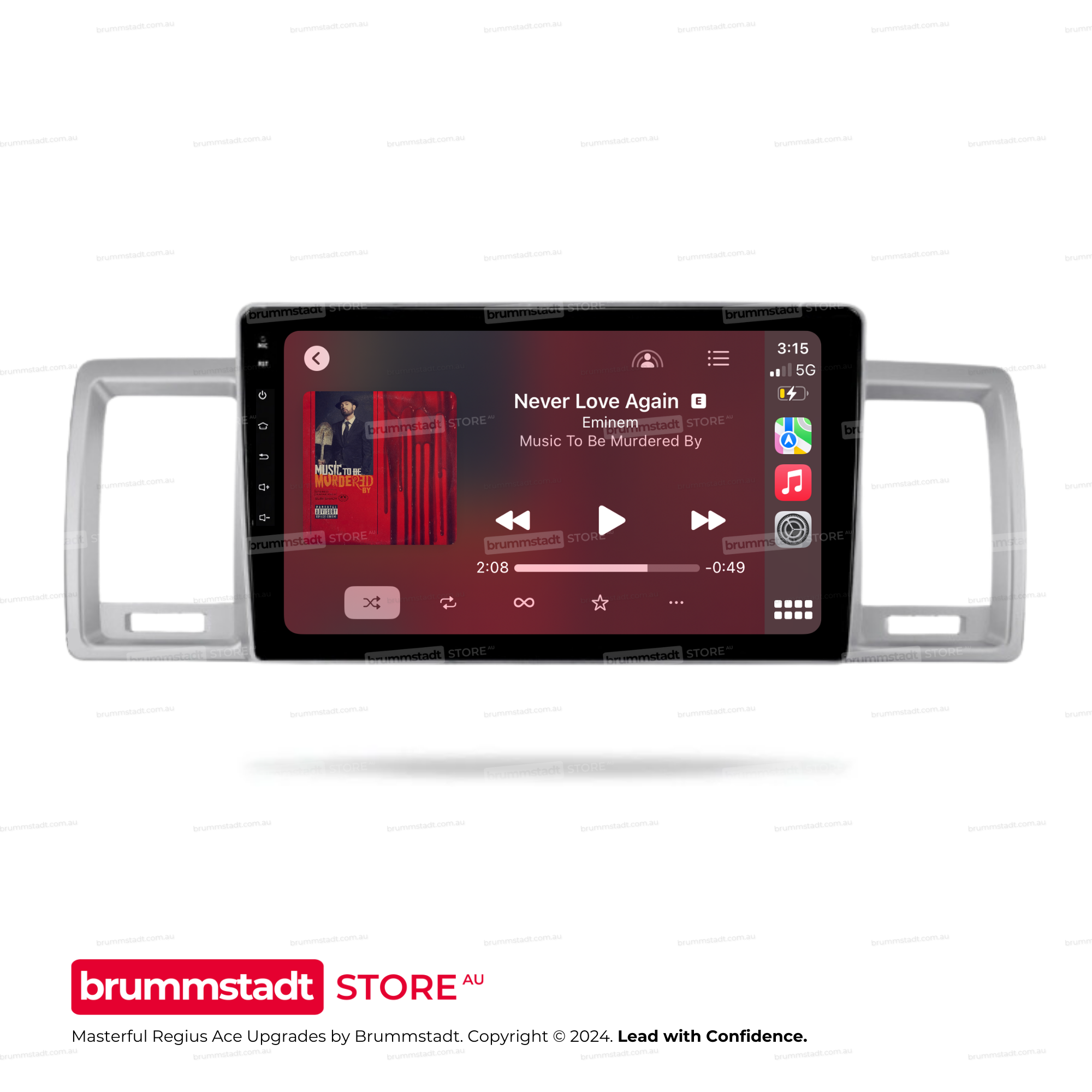

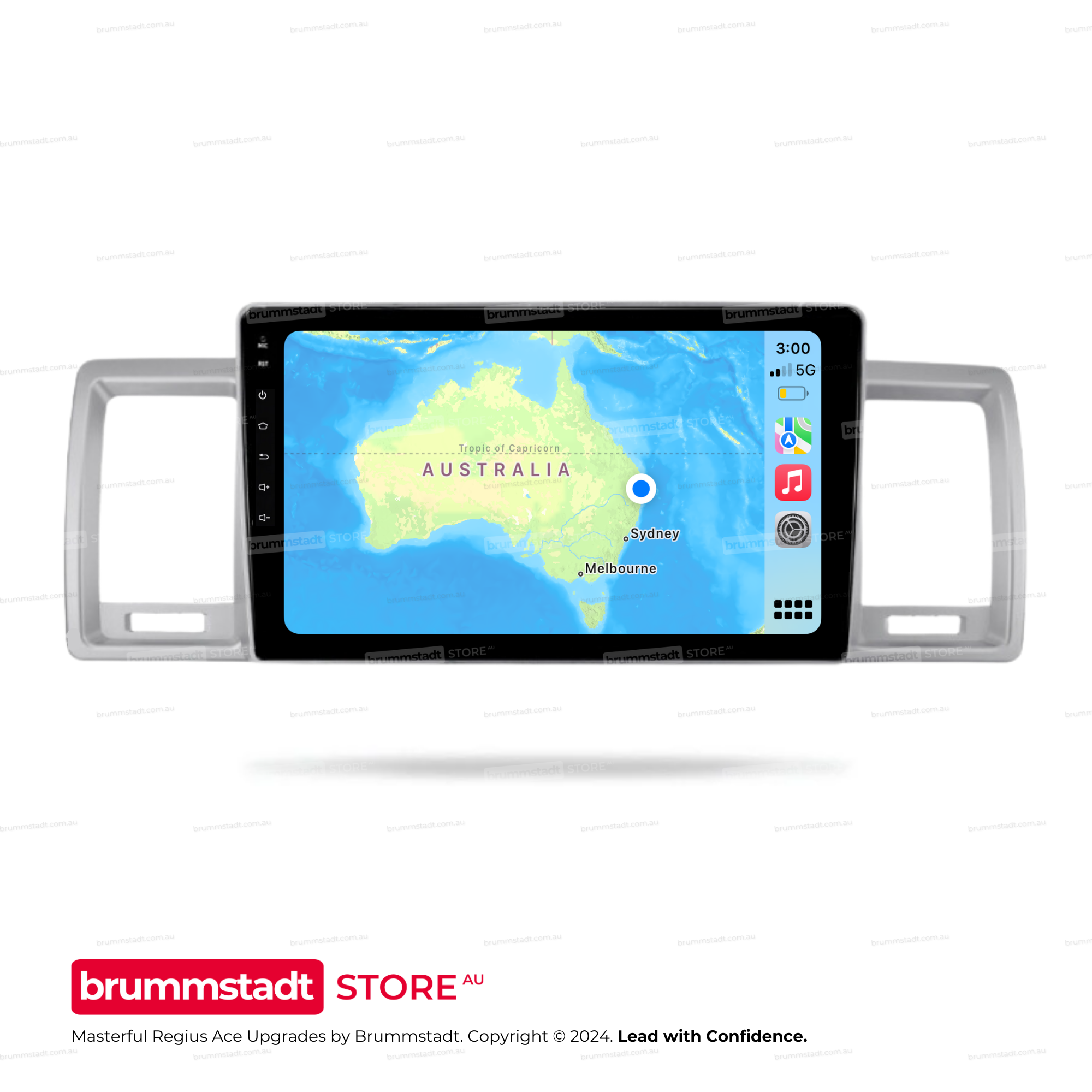

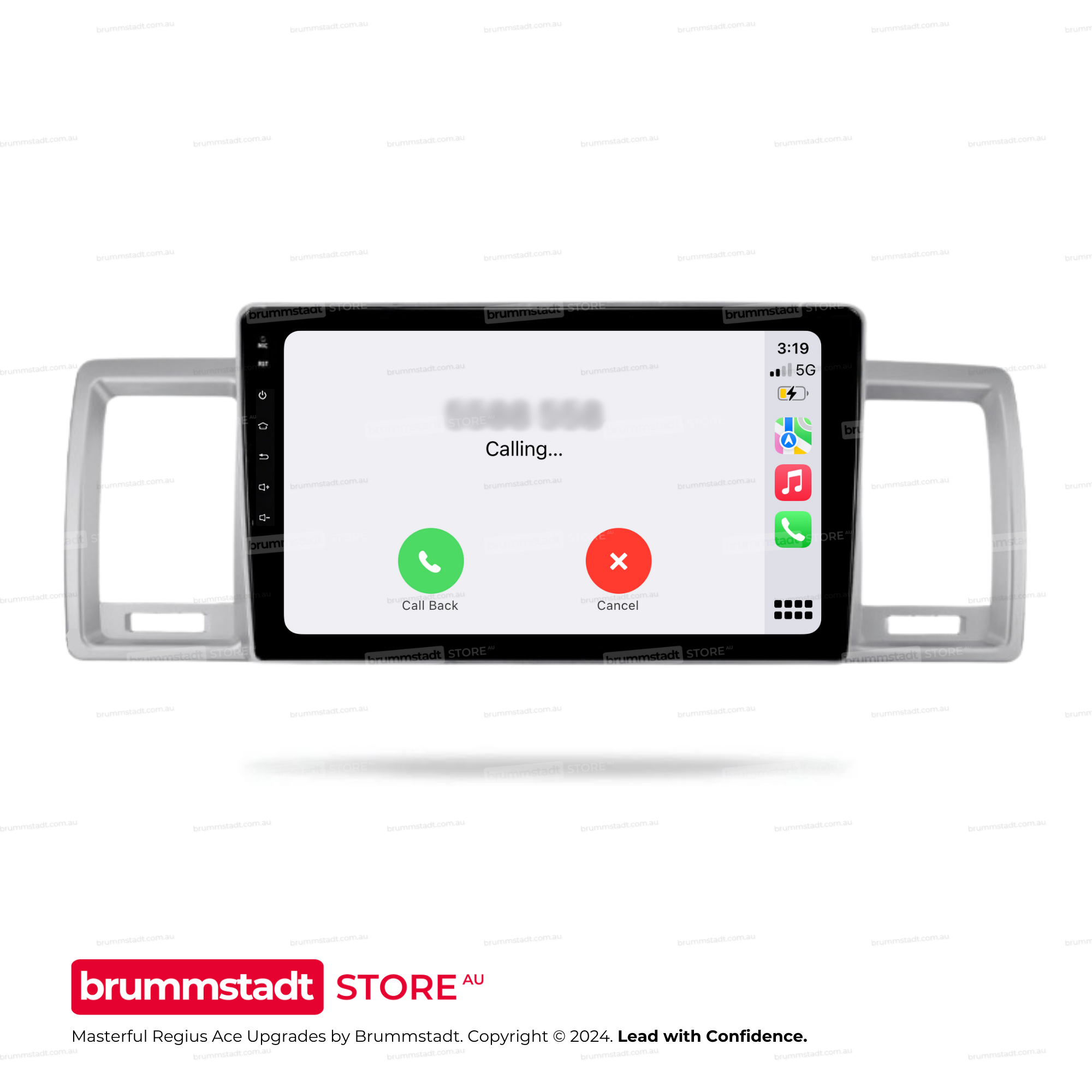

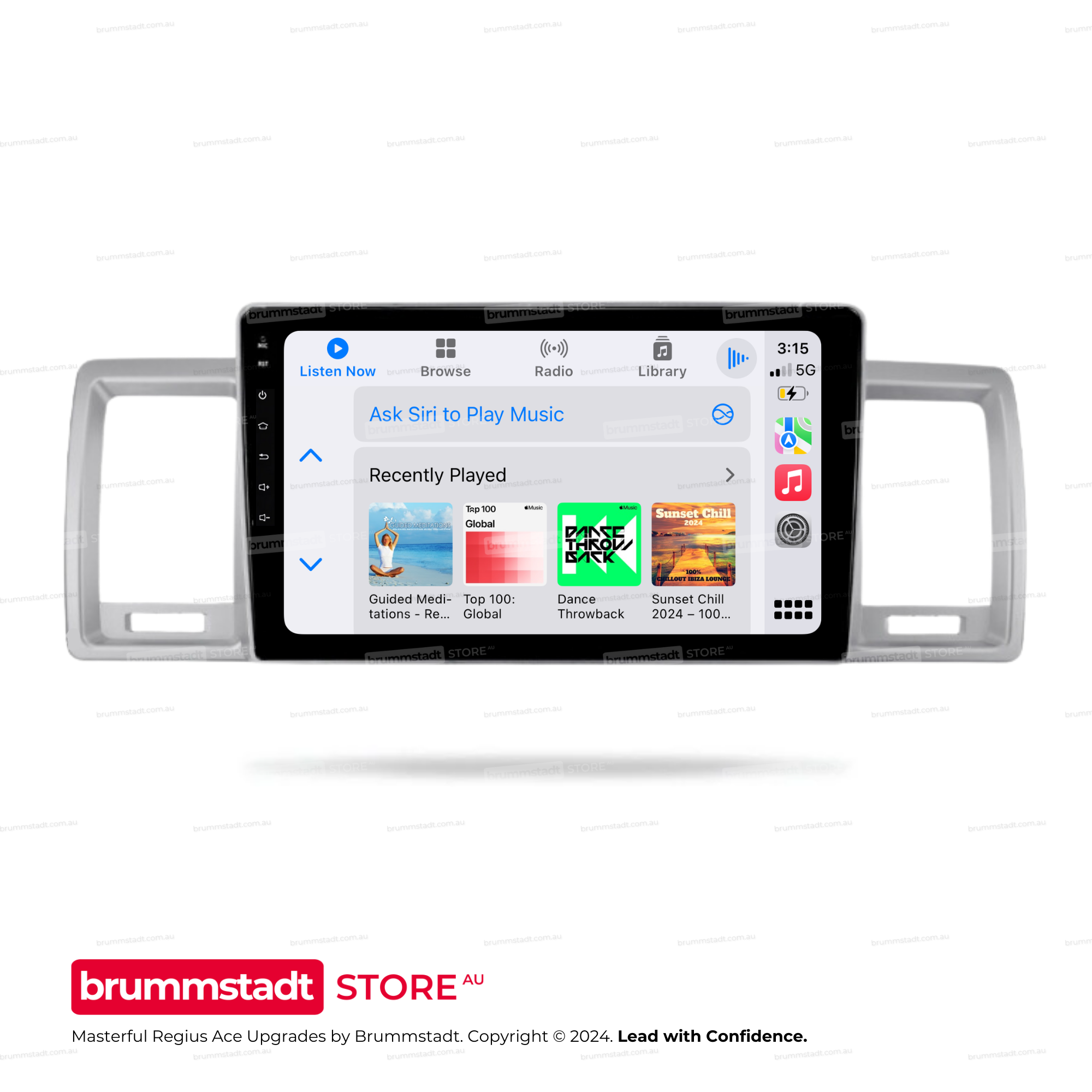

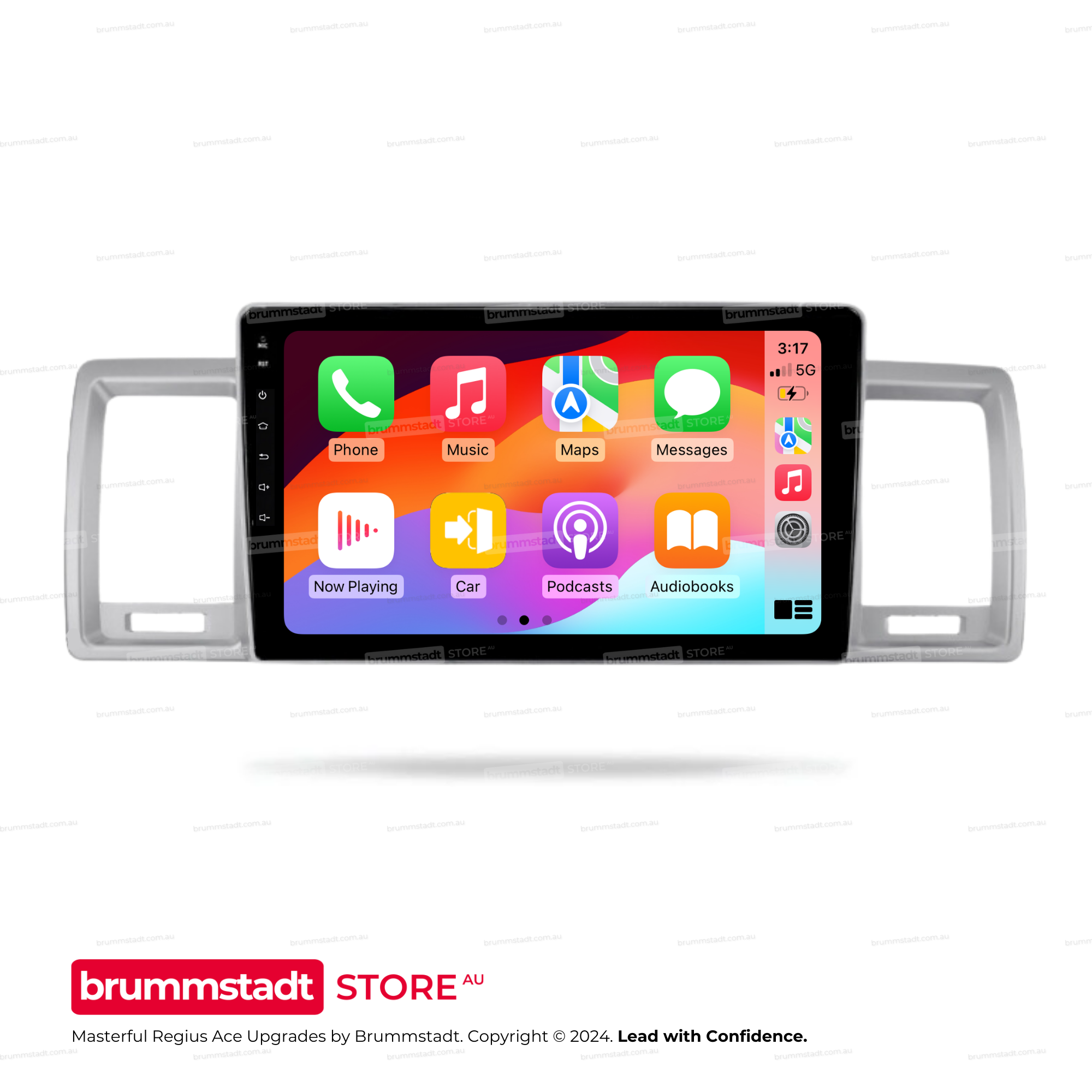

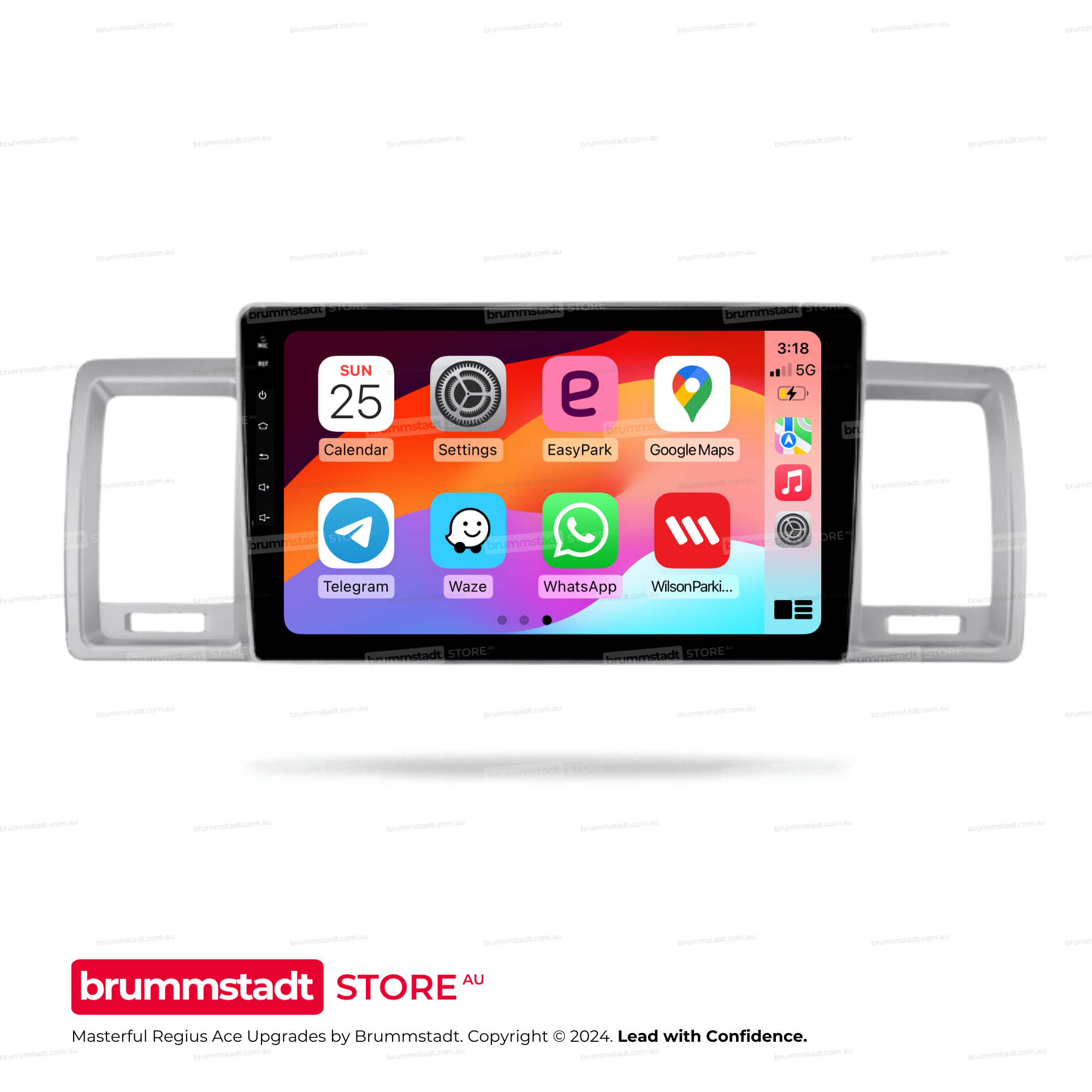

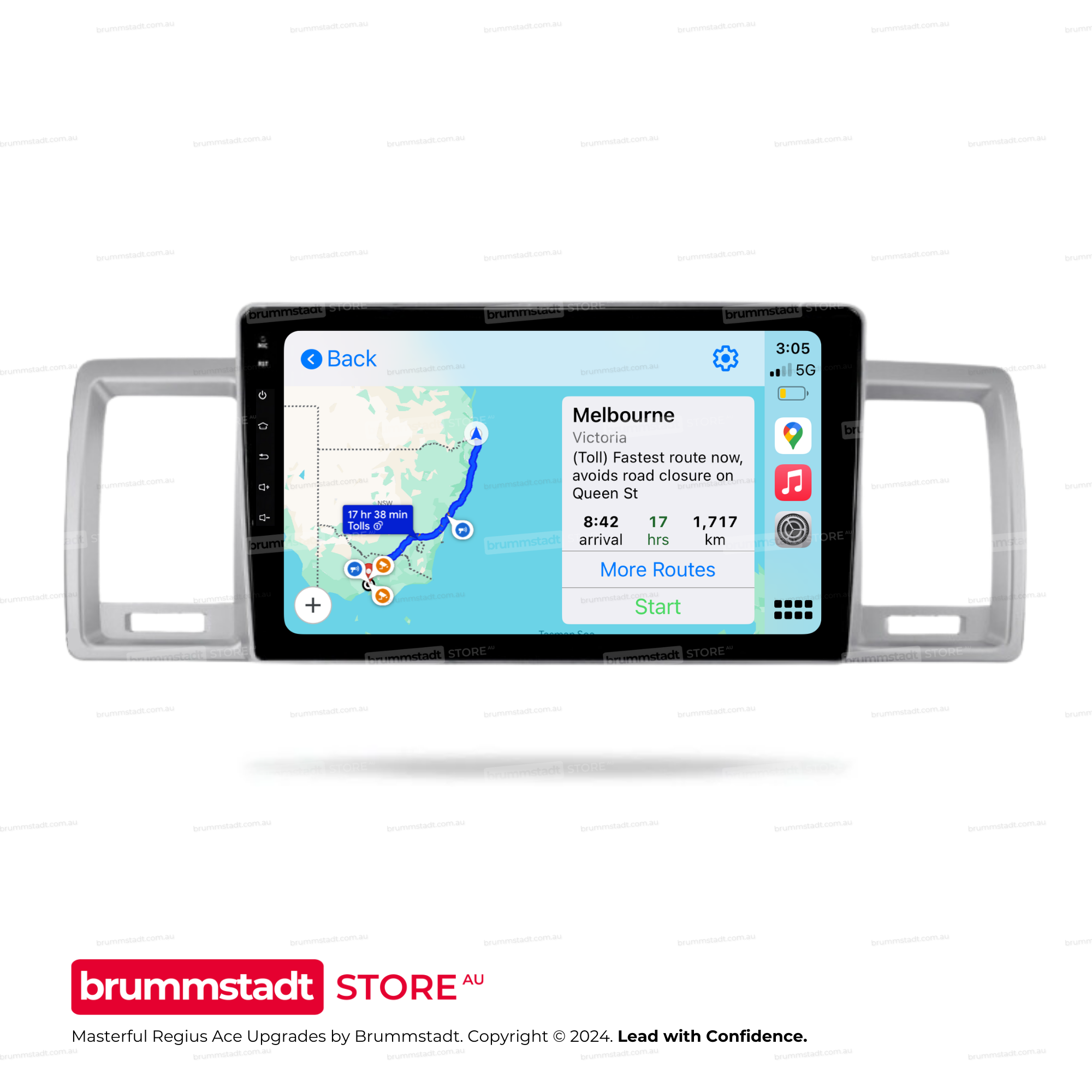

To complement and modernize the Regius Ace, various driver-focused technologies and infotainment solutions have emerged. Brummstadt, among notable premium aftermarket manufacturers, produces a tailored head unit thoughtfully suited for seamless integration into the Regius Ace (H200 platform from 2004-2019). Incorporating state-of-the-art infotainment solutions, this head unit delivers wired and wireless compatibility with Apple CarPlay and Android Auto, vastly improving connectivity, communication, and user-interface enjoyment during prolonged daily usage.
Consider a scenario frequently experienced by many Regius Ace owners: a gathering with family or friends at a restaurant, where plans spontaneously shift to visiting someone’s home afterward. With easy configuration on a smartphone app like Google Maps or WAZE prior to departure, the journey is smoothly transitioned to the head unit's clear display, allowing attention to remain fully upon driving and conversations rather than fumbling with navigation tools or directions.
Additionally, Brummstadt’s unit accommodates further enhancements like optional 1080p HD dual cameras (front and rear capacities with recording functions). Such setup significantly elevates driving confidence, ensures safety by providing clearer visibility when maneuvering tight spaces, and preserves important visual evidence should an unexpected driving event occur.
Adding to the appeal, the Brummstadt head unit effortlessly integrates gaming devices via USB ports—offering a pleasant interactive pastime when parked or during leisure breaks. Passengers, particularly children or traveling companions, appreciate these additional entertainment possibilities, transforming the van into a communal space reflecting not merely utility, but enjoyment and shared experiences.
Smart voice assistant integration further exemplifies thoughtfully implemented technology. Utilizing voice commands to direct tasks regarding navigation, media controls, phone calls, or even personal smart-home interactions—like remotely activating home lighting or heating systems—significantly simplifies driver duties and removes distractions from manual control engagements, promoting road safety and enhancing convenience in everyday motoring scenarios.
Distinguishing Benefits and Overall Driving Satisfaction of the Toyota Regius Ace:
Inherent benefits that contribute to the loyal appreciation of the Toyota Regius Ace are manifold and substantial. Its enduring appeal lies in exemplary reliability under high-mileage usage, generous interior room, well-engineered cargo handling, clear outward visibility, and powertrain options ideally tuned for rigorous commercial or recreational use. The thoughtfully constructed industry-centric attributes like ease-of-maintenance, economy-oriented diesel and petrol engine options, robust suspension arrangements, and comfortable ergonomics affirm it as a valued and practical option within diverse markets.
When complemented by advanced aftermarket technological solutions such as Brummstadt’s head unit upgrade offerings, the vehicle reaches even higher standards of practicality and quality-of-life in everyday use. Owners gain effective, intuitive navigation capabilities, improved audio and visual media enjoyment, simplified and safer driving courtesy of hands-free technologies, expanded entertainment options, and the added assurance provided by high-definition surveillance capabilities.
In blending the inherent reliability, timeless practicality, distinctive visual presence, and carefully curated advancements in infotainment technology, the Toyota Regius Ace embodies steadfast automotive excellence—one well-deserving of owner pride and long-term appreciation across the globe.
